Soon ready welding the ribs in template.
20 × 20x2 mm steel profile to be galvanized
weighs 17 Kg /ribs.

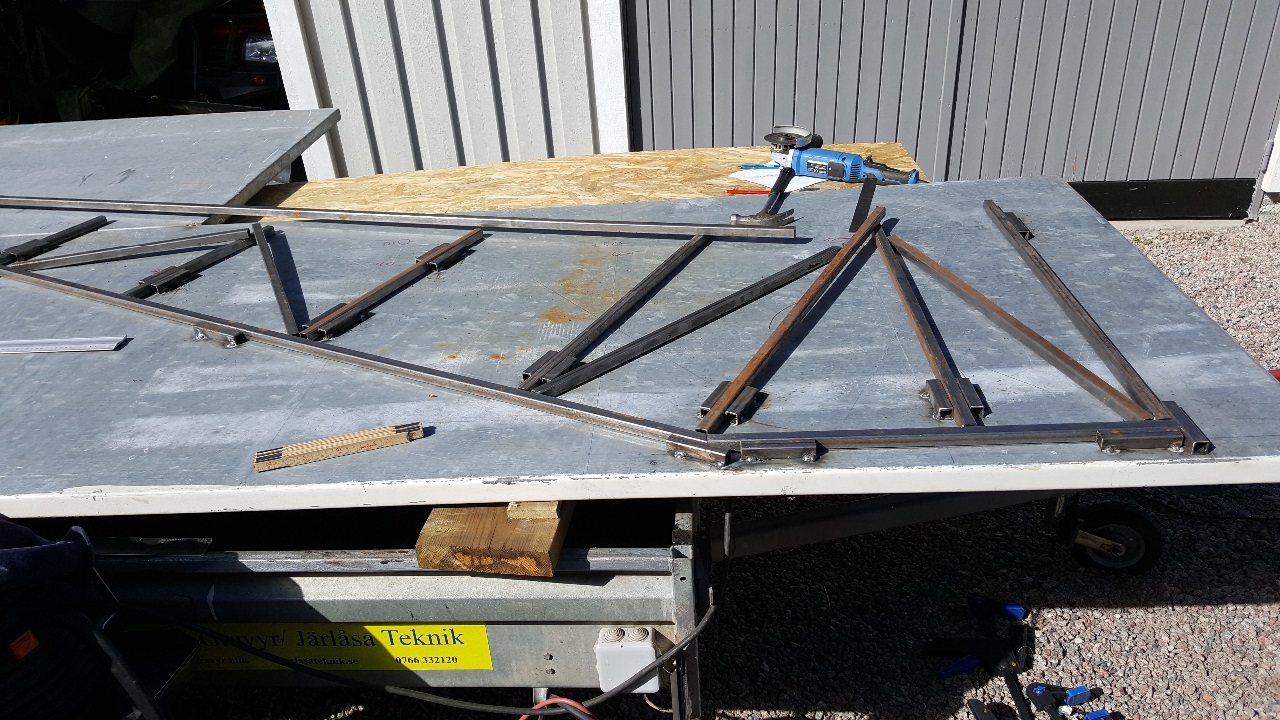

The template that is being manufactured to weld the 24 main ribs that I want to my 8 meter dish.
f / d 0.55

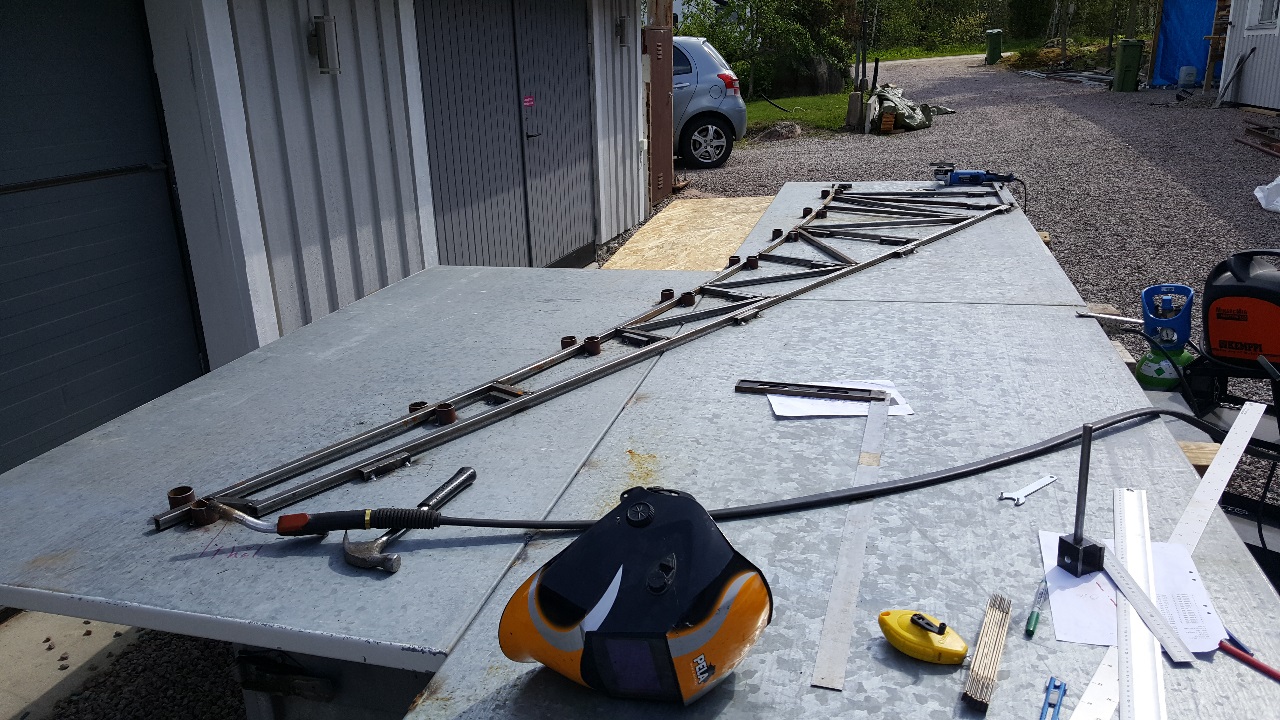

A ribs lying in the welding mold that is welded
Two 5 Kg rolls of welding wire 0.8 mm and two gas cylinders were used.

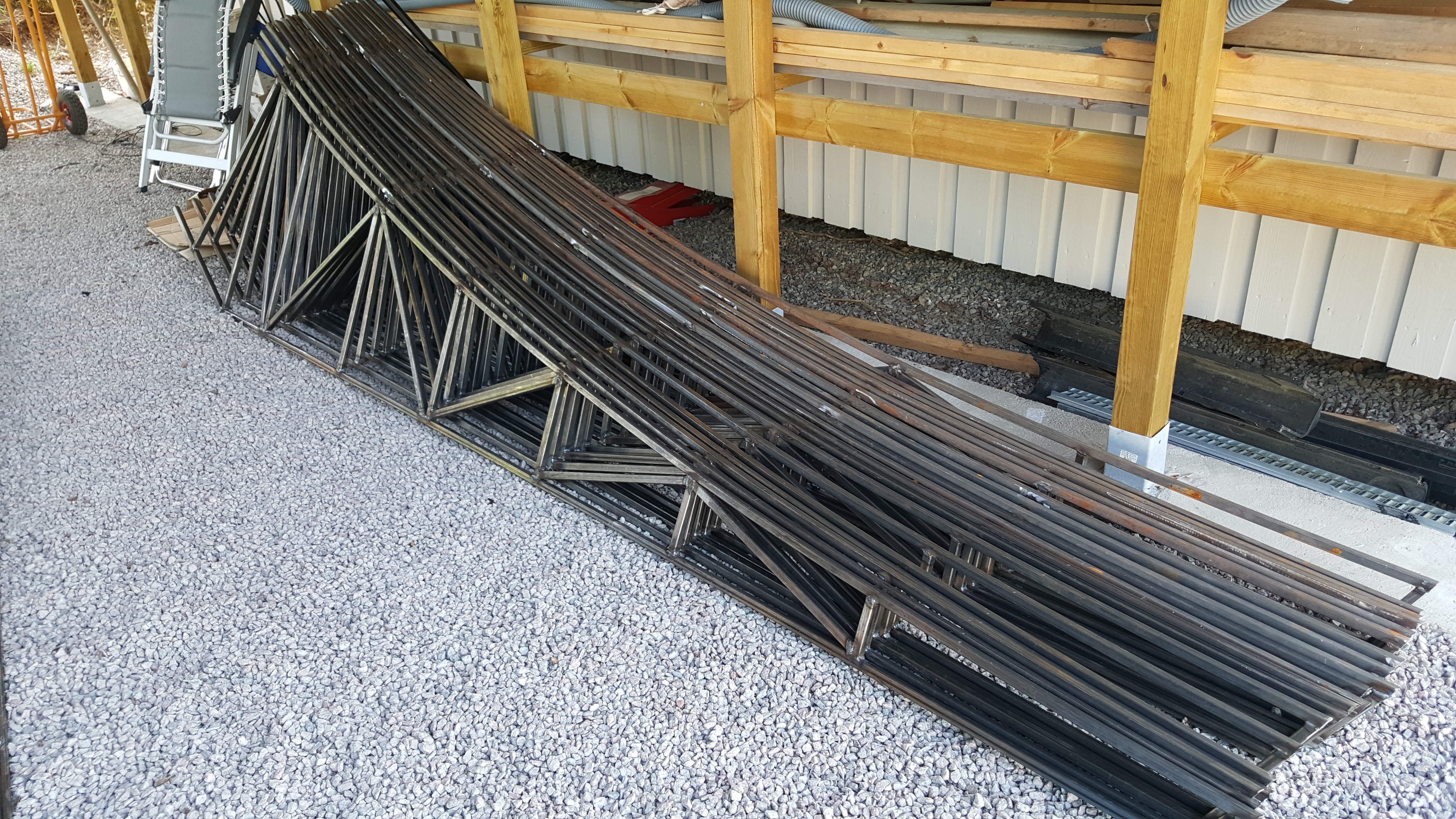

Welded and clear holes are made for galvanizing

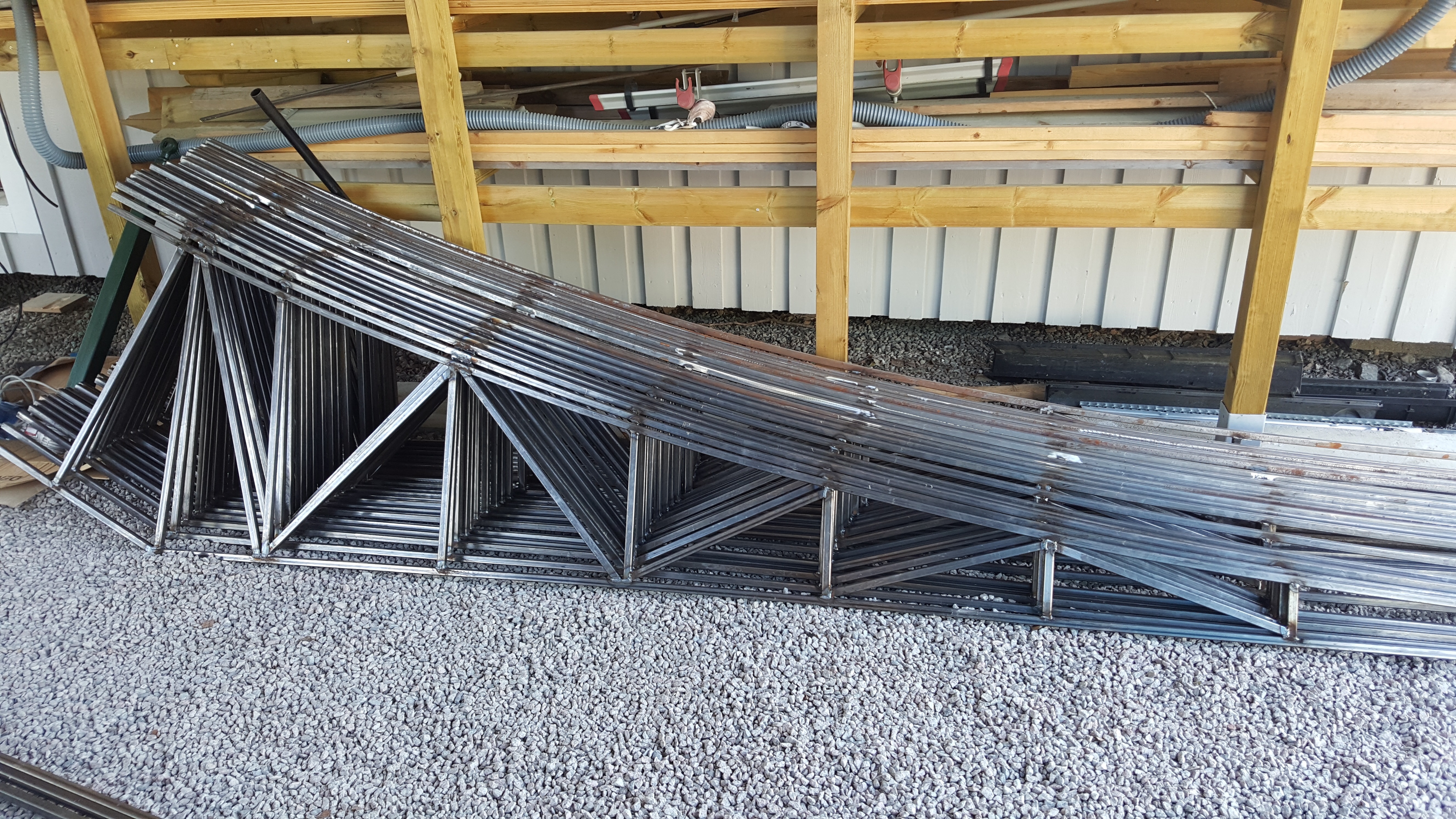

Welded and clear holes are made for galvanizing

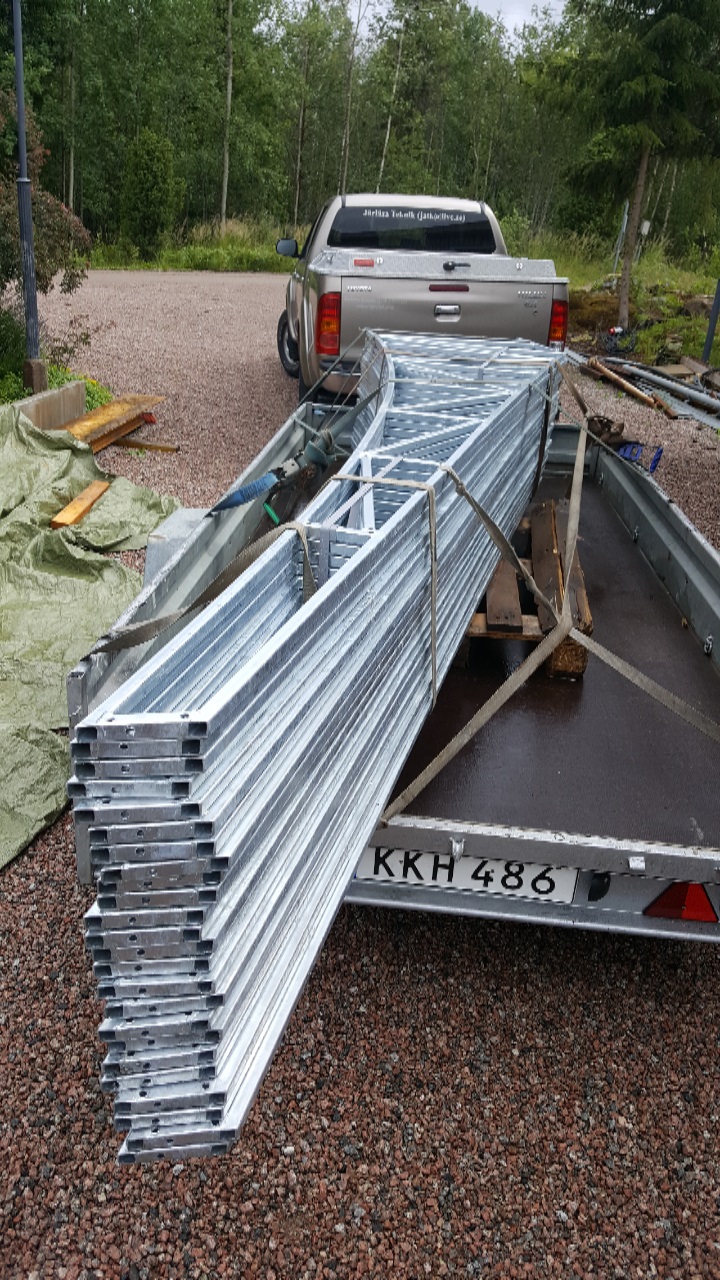

Twenty-four ribs are taken from the galvanization, looked very good.

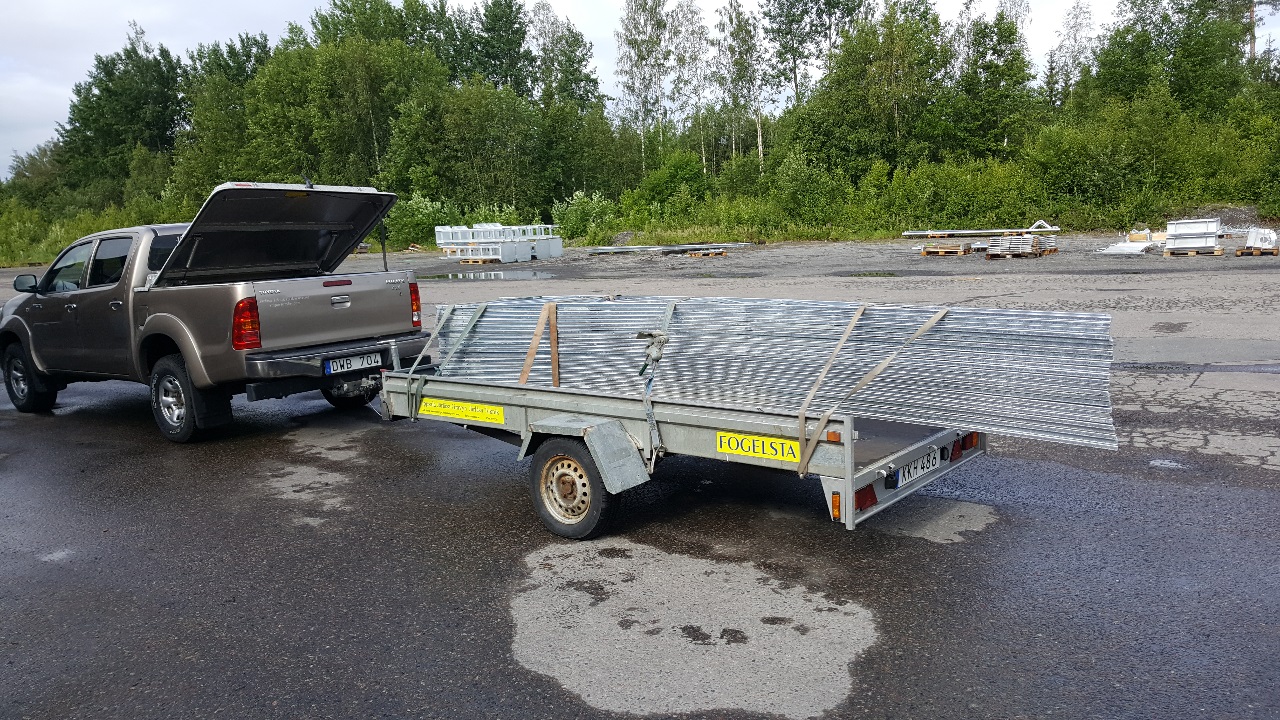

Loaded and clear from galvanizing.

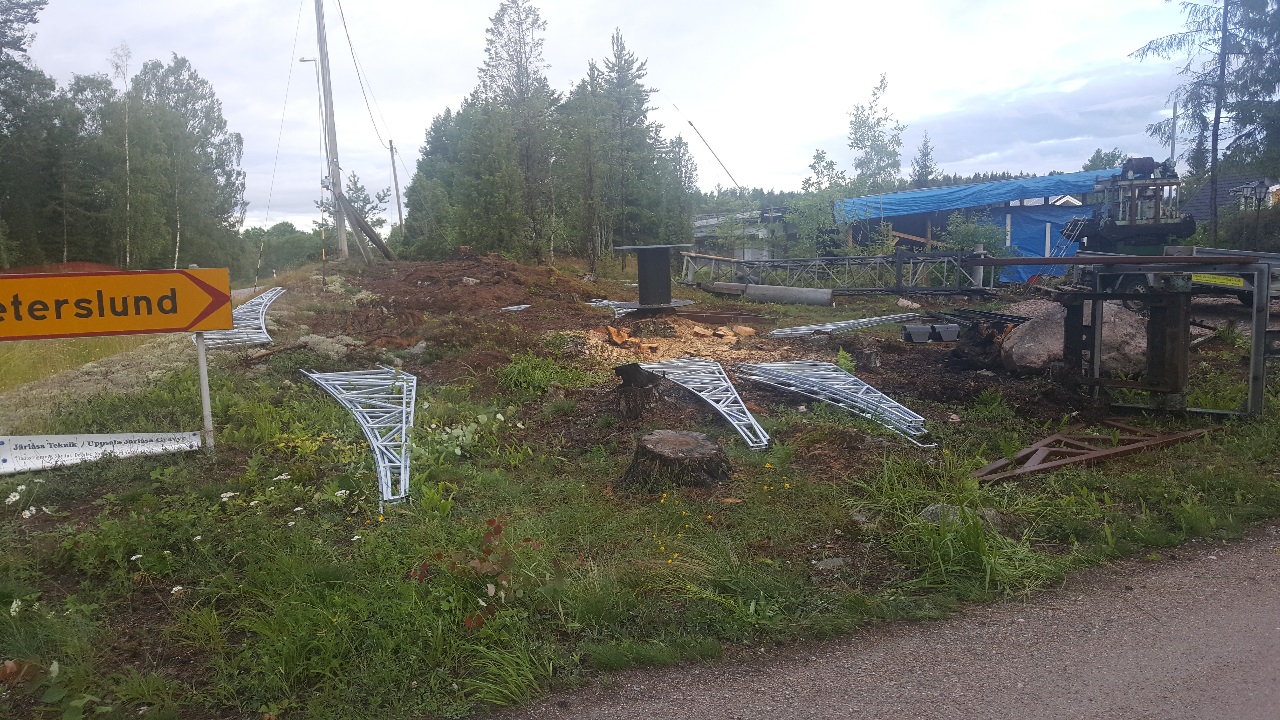

Galvanized ribs for mounting
