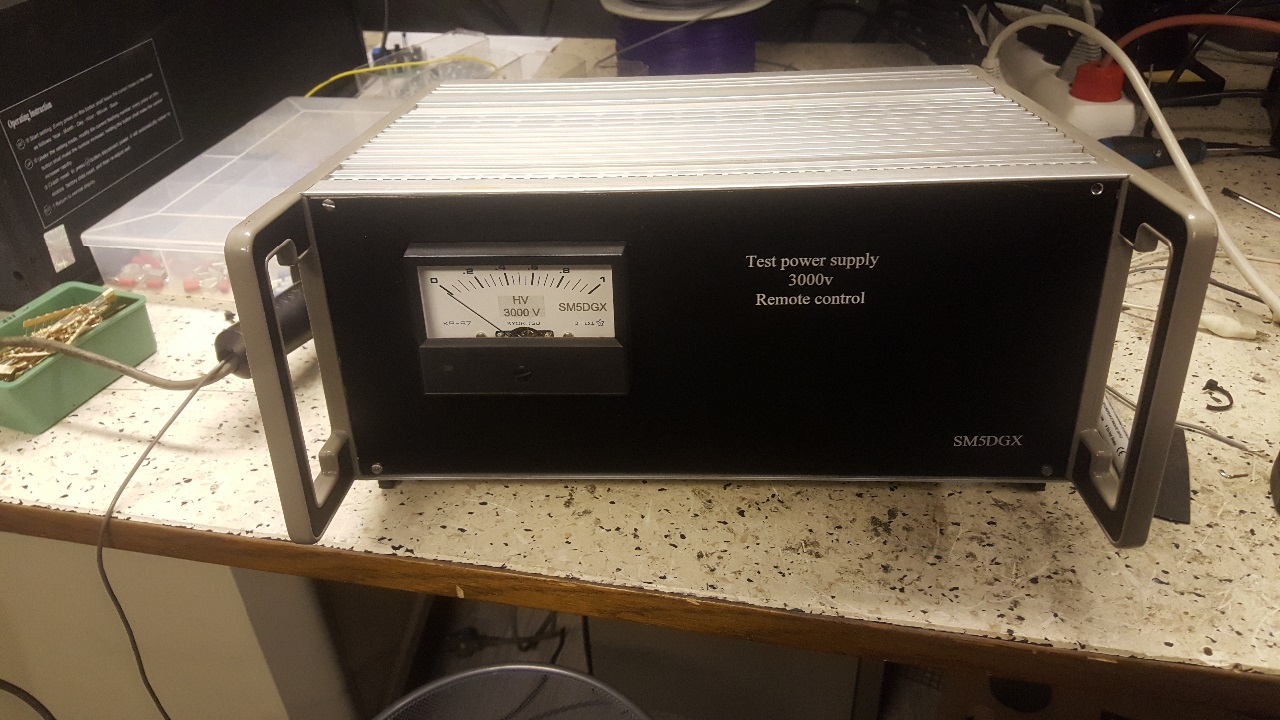

HV power supply for initial test of PA

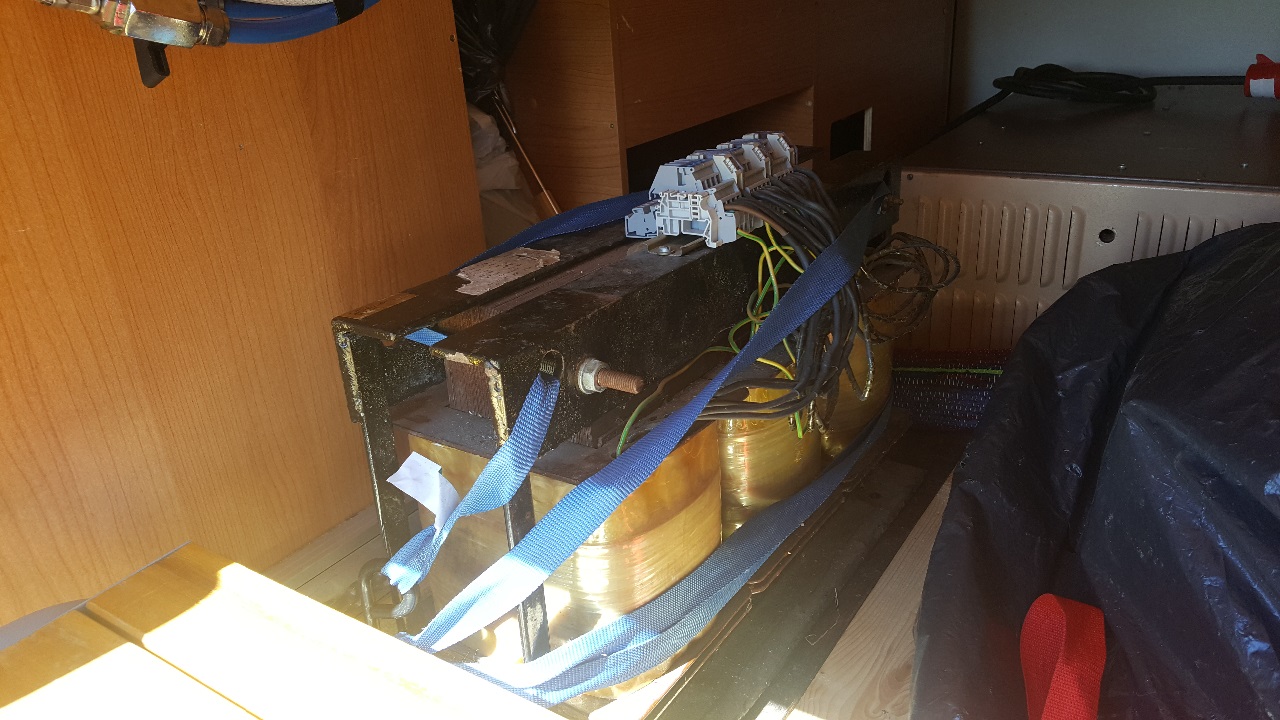

BIG and HEAVY high voltage transformer + control cabinet obtained from SM2ILF
10 Kva

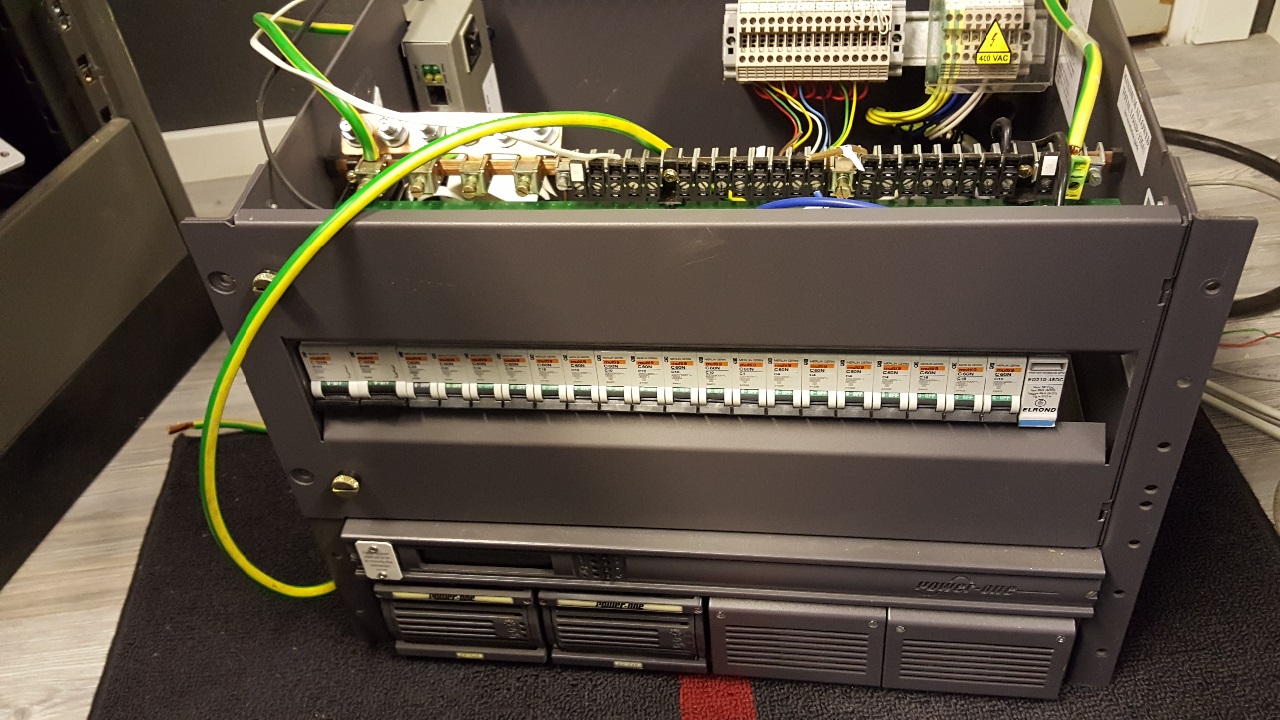

My latest find from friends 46-52 volts 120 Amp dc aggregates which may come in handy later when switching to LDMOS steps.


46 - 52 volts 6 Kw. Really good stuff that would just be scrapped.

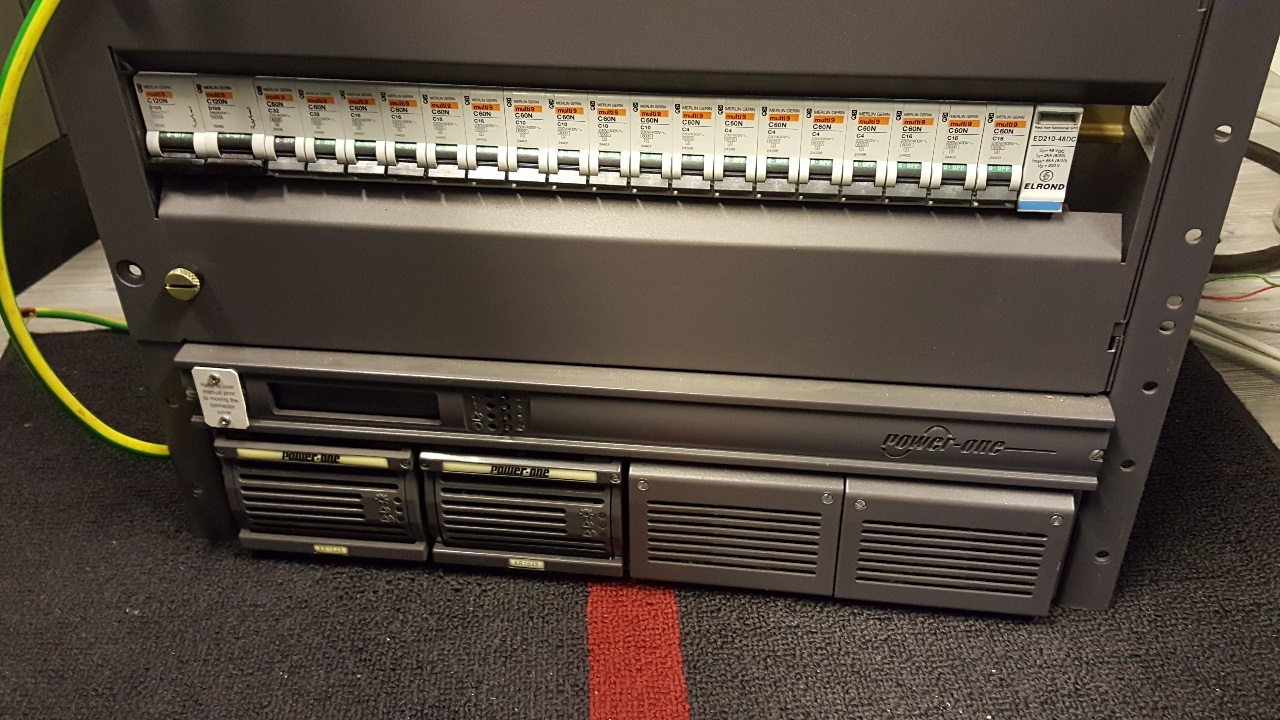

4 modules can be plugged in (hotswitches) and they share the load.
